S81120 Set-Up
Power Up
Wind sensor TX145WSDTH or Wind Senor TX145WSDTHv3
- TX145WSDTH - Remove the Insulation Tab from the Battery Compartment of your Breeze Sensor, and make sure the power switch is turned ON. TX145WSDTHv3 - Insert 3 AA batteries into your BreezePro Sensor.
- . Insert the 5V Power Adapter into an outlet, and then plug it into the Power Jack on the back of the station. Next, insert 2 AA batteries for backup (optional).
Note: It may take up to 10 minutes for your sensor data to appear on your station’s screen.
Station Settings
When the station is first powered on, a greeting will appear on the LCD display

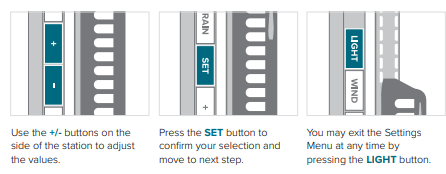

and then your station will move into the Settings Menu. To enter the Settings Menu after the initial setup, hold the SET button on the side of your station.
Settings Menu Order
Greeting • Language • 12/24 Hour Time • Hour • Minutes • Year • Month •Date • Month/Date or Date/Month Order • Fahrenheit/Celsius • Wind Speed Units (MPH or KMH) • Wind Direction (Letters or Degrees) • Rain Units (IN or MM)*
Note: Weekday will set automatically after year, month, & date settings are adjusted.

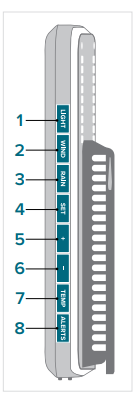

Buttons
1. LIGHT
Press to adjust backlight. Hold to enter Auto-Dim Settings.
2. WIND
Press to view Wind Speed History. While viewing, hold the MINUS button to reset the history reading.
3. RAIN*
When viewing Rain, Press RAIN to view rain history month, year etc. Hold RAIN to search for Rain sensor. Hold RAIN and SET together to return to Time display.
4. SET
Hold to enter Settings Menu. Press to toggle full weekday or month/date/year.
5. PLUS (+)
Press to toggle indoor/outdoor temperature & humidity readings. Use to adjust values in Settings Menu.
6. MINUS (-)
Hold to reset history readings. Use to adjust values in Settings Menu. Hold to delete add-on TH sensor.**
7. TEMP
Press to view HI/LO temperature and humidity records. Hold to search for add-on TH sensor.**
8. ALERTS
Hold to enter the Alerts Settings. While viewing, use the +/- buttons to activate an alert and the ALERTS button to confirm and move to the next option.
LCD Display
Adjusting the LCD Display Brightness:
Press the LIGHT button to adjust the backlight intensity. There are 4 brightness levels, plus an off option.
Auto-Dim Settings
Program your display to automatically dim during preselected times.
Hold the LIGHT button to enter the Auto-Dim Settings Menu.
Press the +/- buttons to turn the Auto-Dim feature on or off. Press LIGHT to confirm.
Press the +/- buttons to adjust the starting hour. Press LIGHT to confirm.
Press the +/- buttons to adjust the stopping hour. Press LIGHT to confirm and exit.
Custom Calendar Display
Press the SET button to select either the Full Weekday or Month/Date/Year.
The
icon will appear on the LCD when the Auto-Dim feature is activated.
*Rainfall data is only available when a compatible rain sensor is connected.
*Add-On Temperature & Humidity data is only available when a separate TH sensor is added.
