How do I select a channel on the outdoor sensor?

Some stations have the ability to add additional sensors using channels.  To confirm your station has this ability consult the product manual here.

How to select a channel for the outdoor sensor:

It is best to confirm how to select a channel by reviewing the product manual for your station as every station isn't the same.

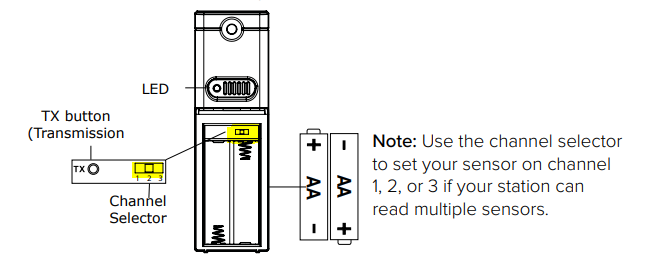

In general, however, for most temperature/humidity (TX141TH-BCH series sensors) make sure to select channel 2 or 3 on the actual sensor.  This switch is located inside the battery cover.

To view add-on sensors (in general):

Press the sensor button to toggle through readings from sensors 1, 2, or 3.  When multiple sensors are connected you can view individual sensors or auto-scroll through all three channels.  The auto-scroll indicator will be present on the display and switch to the next channel about every 5 seconds.
